Measurements
Area
Trace and save 2D area measurements from still frames or clips.
Area Measurements
HeartLab allows users to perform post-processing area measurements directly within the study viewer. Area measurements can be created using either continuous click-and-drag tracing or point-by-point contour tracing.
This guide explains how to create, refine, and save area measurements.
Applies to
- All users can create measurements, however users with the Viewer only role cannot save measurements.
Measurements can only be saved if the study does not already have an approved final report.
Steps
Step 1: Select the Area Tool
- Open the study in the viewer.
- Select the Area tool from the Measurement Toolbar.
Step 2: Define the Area
You can define the measurement contour using either of the following methods.
Option A: Click-and-Drag Tracing
- Click and drag in one continuous motion to trace the desired contour.
- Release the mouse to complete the measurement.
If you release the mouse before completing the contour, or double-click during tracing, HeartLab automatically closes the contour by connecting the final point to the starting point.

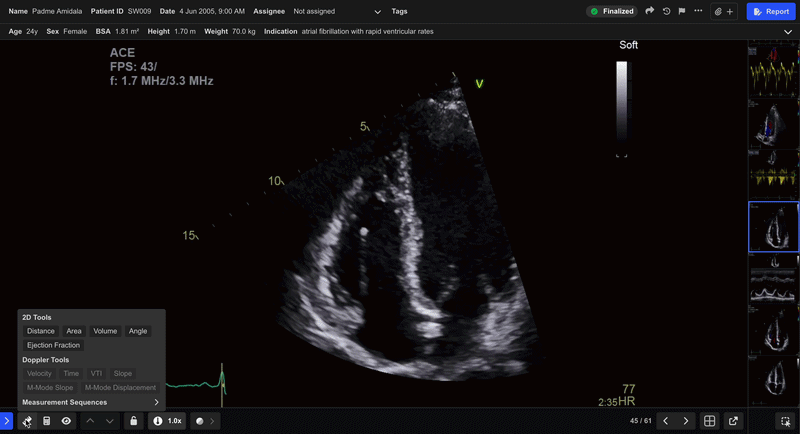

Option B: Point-by-Point Tracing
- Click around the edges of the structure to define the contour point by point.
- Double-click to complete the measurement.
Double-clicking before returning to the starting point automatically closes the contour by connecting the final point to the starting point.
Step 3: Review the Measurement
Once the contour is complete, HeartLab displays the calculated area value.
You can then choose to:
- Resample the contour
- Retake the measurement
- Save the measurement
Step 4: Save the Measurement
- Select Select Measurement or press Enter.
- In the pop-up window:
- Search, scroll, or create a measurement label
- Select the appropriate measurement type
- Optionally include related measurements
- Click Save or press Enter.
After Saving
The saved measurement appears:
- Highlighted in green on the playback bar
- Labelled with the measurement type
Hover over the highlighted section to:
- Preview the measurement
- View the measurement value
